HECTOR SEAL RFID – UHF/NFC

Descrizione

HECTOR SEAL RFID is an adjustable plastic seal that combines the mechanical characteristic of high tensile strength, typical of this model, with the safety and greater versatility of use offered by the automatic radio frequency identification technology, RFID.

The seal has a particular locking system with a metal insert that strengthens its resistance to handling. It can also be made with and without pre-cut.

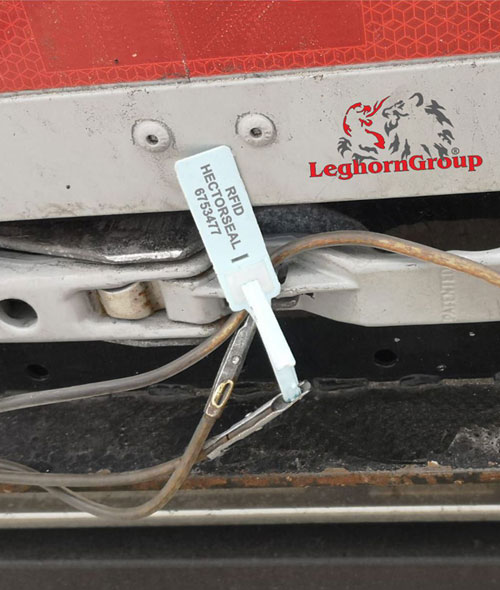

HECTOR SEAL 7.5 × 420 mm satisfies a wide range of applications: it can be used to seal tank trucks, with closing holes far from each other, or for heavy mailing bags.

The presence of a unique RFID chip guarantees its complete non-clonability, strengthening the security of the product in the authentication of goods along the transport and logistics chain.

The availability of the product in two different operating frequency bands also ensures differentiated performances and therefore broadens the possibilities of use in the field.

The transparent housing covering the plastic head not only seals and makes the RF part inaccessible, but also allows a quick visual inspection and reading of any marking data printed in clear text on the head itself.



TECHNICAL DESIGN



COLORS & CUSTOMIZATIONS



TECHNICAL DATA
Operating frequency: 13.56 MHz – Protocol: ISO 14443A
RFID inlay model: HF Smart Label
Chip type: Ntag203, Ntag213
HF / NFC reading range: approx 3 cm

Operating frequency: 860-960 MHz – Protocol: ISO 18000-6
RFID inlay model: UHF Smart Label
Chip type: Impinj Monza 5 / Alien H3
UHF reading range: approx 10 cm

Plastic tag size: 75mm * 28mm, Seal tail: Width 7.5mm, Length 420mm
Material: Polypropylene
Printing (optional): Laser engraving marking
Barcode (optional): Barcode printing
UID printing (optional): Engraving marking Laser

Operating temperature: -20 ℃ ~ 55 ℃
Warranty: 1 year
